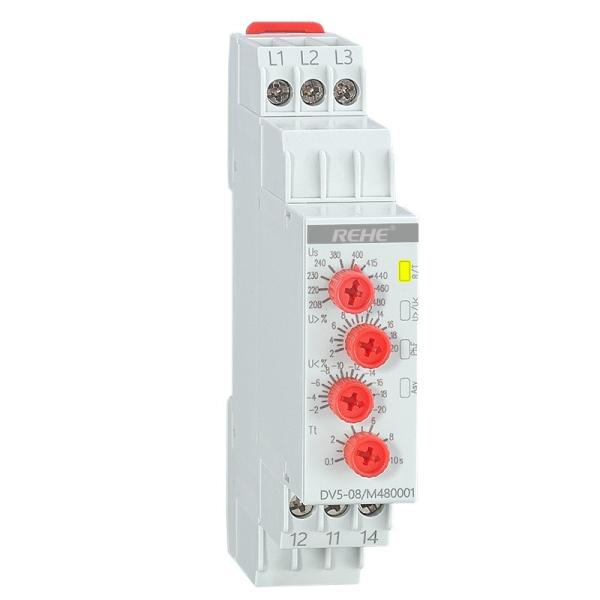

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Name: DV508 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller
Brand: SUCHEN
Price: 16.54 USD

Place of Origin : Zhejiang, China

Brand Name : SUCHEN

Model Number : DV5-08

Theory : Voltage Relay

Usage : PROTECTIVE

Size : Miniature

Protect Feature : Sealed

Contact Load : Low Power

Supply terminals : L1/L2/L3

Supply voltage (AC 50-60Hz) : 208-220-230-240-380-400-415-440-460-480

Voltage set : 3*400V/50-60Hz

Output contact : 1SPDT

Peak overload<1ms : 600V<1ms

Time delay t1 : Fixed, max. 200 ms

Time delay t2 : Adjustable 0.1-10s

Rated current : 10A/AC1

Switching voltage : 250V AC1/24V DC

Power source : AC

Packaging Details : 1.Strong Strandard Export Package,Meet The Long-Distance Transportation

Price : $16.54/pieces

Contact Now

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Technical parameters

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

♦ Monitoring of 3-phase mains:

- voltage in levels (undervoltage and overvoltage) in range 120-277V (3P+N) or

208-480V (3P3W)

- phase asymmetry (can be switched off)

- phase sequence

- phase failure

♦ Adjustable function, MEMORY

♦ Function of second relay (independent/paralled)

♦ Adjustable delay for short peaks for each level independently

♦ M480: For circuits 3×400V (without neutral)

♦ M270: For circuits 3×400V (with neutral)

♦ Galvanically separated supply voltage AC 400V, AC 110V, AC 230V, AC/DC 24V

♦ Output contact: 2×changeover 10A/250V AC1

♦ 2-MODULE, DIN rail mounting

Description

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Connection

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Symbol

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Function

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller

Model

Supply voltage

(AC 50-60Hz)

Switching voltage

Unit

Price

DV5-08

208-220-230-240-380-400-415-440-460-480

250V AC1/24V DC

1PC

$16.54

DV5-08 Power Relay Phase Loss Sensor Relay Voltage Monitor Controller
